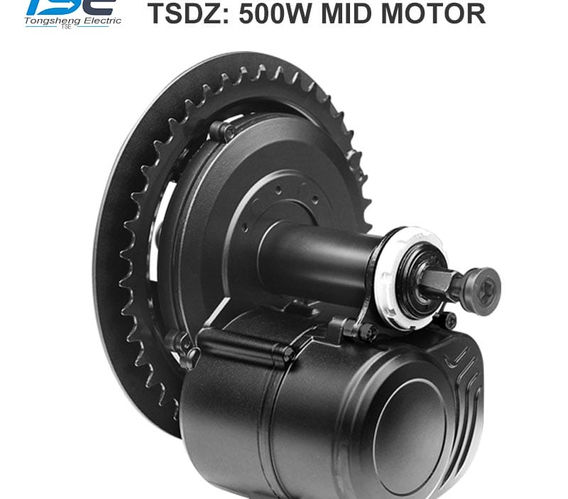

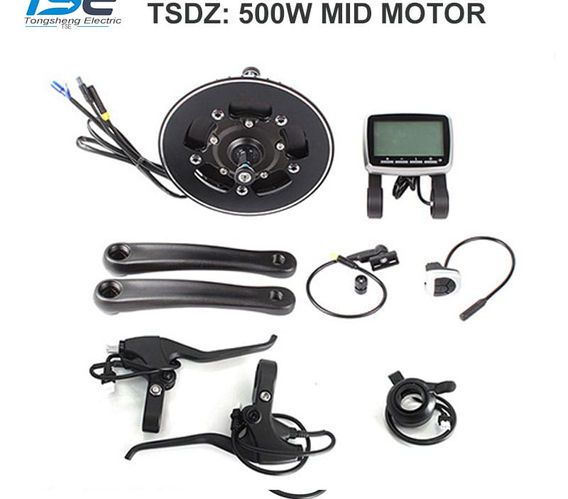

TONGSHENG 500W Mid Drive Motor Torque Sensor E-bike Kit

USD

271.9

Product Name: This performance-driven system features a TONGSHENG 500W Mid Drive Motor Torque Sensor E-bike Kit, and the TSDZ8 Conversion System for high-torque cycling.

Specifications

ITEM NO.: TSD22B
Dimensions (L x W x H): 134 x 156 x 182mm
(CL/B): 50-53.5mm / 68-75mm
Rated Power: 250W/350W/500W
Efficiency (%): ≥80
Reduction Ratio: 41
Wheel Size (Inch): Optional
Rated Voltage (DCV): 24V/36V/48V
Max Torque (N·m): 80
Weight (kg): 3.6
Speed (Rpm): 100
Assist Ratio: 36%~300%
Assist Sensor: Speed + Torque
Axle Standard: JIS
Noise (dB): <55
Throttle: Optional
Brake Cut-off: Yes
Headlight Power (DCV/W): 6V/3W
Fire Rating / Salt Spray Test: 65/96
Certification: CE/RoHS/EN 15194

MOQ:

- 10pcs for one single model

Customization welcome subject to the terms below

Logo/graphic design: +$1/piece (Min. order: 500 pieces)

Graphic customization: (Min. order: 500 pieces)

Customized packaging: (Min. order: 500 pieces)

Recommended Order Quantity (ROQ):

The above price is based on Recommended Order Quantity (ROQ) FOB China. If you need to order more or less than the above ROQ, please contact us through email to [email protected]

Attention:

1. Weight and size: the products weight and size are measured manually, and with or without accessories coming, so there might be a little more or less than its actuality.

2. The price here are based on trade term of FOB China.

3. Delivery are usually carried out by sea in 10-15 days after order confirmed. If you need your order to be delivered by air or by express, you are required to pay an extra delivery cost.

4. Import cost is not inluded. Please check your local customs for import tax and other fees arising from the import.

5. Payment term:

- FCL Order: 30% after order confirmed, and balance against order completion before shipment.

-LCL Order: 100% prepaid.
