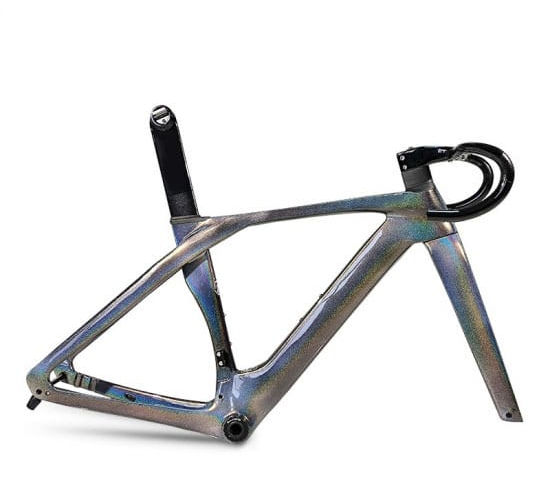

CRF-PRO145 High-Performance Carbon Bike Frameset Aero Road Bike Frame

USD

458

Please Click Here to view High-Performance Carbon Bike Frameset Aero Road Bike Frame and other bike frames.

Model No.: CRF-PRO145
Specifications

Type: Carbon Road Frame

Frame Material: Toray T700+T800 Carbon Fiber

Finish: customize

Frame sizes:

-47cm(156-161cm),

-50cm(161-166cm),

-52cm(166-172cm),

-54cm(172-177cm),

-56cm(177-182cm),

-58cm(182-188cm)

Handlebar: 400*80/400*90/420*80/420*90/420*100/440*90/440*100/440*110/440*120mm; Weight 390g±10g

Axle F/R: Fork(100x12mm),Frame(142x12mm)

Max tire: 700c Max 32c

Brake System: Flat-Mounted Disc Brake F/R

Headset: Top 1-1/2"(52mm),Down 1-1/2"(52mm)

Bottom Bracket: T47 Screw-in BSA(86mm)

Fit for Derailleur: Mechanical and Di2 both

Fork and Seatpost: ork Size 28.6mm,Weight 430g±20g; Seatpost Length 350mm,Weight 195g±5g

Frameset Contains: Frame+Fork+Handlebar+Seatpost+Seatpost Clamp+Thru Axle+Headset+BB

Net Weight: 1050g (based on 54cm size)

Warranty: 2 years

Compatible with Fork: Straight.Suspension,Tapered

Suitable Derailleur: Di2 And Mechanical Both

Default color: Matte Black (other color required extra fees)

MOQ:

- 5pcs

Recommended Order Quantity (ROQ):

The above price is based on Recommended Order Quantity (ROQ) FOB China. If you need to order more or less than the above ROQ, please contact us through email to [email protected]

Attention:

1. Weight and size: the products weight and size are measured manually, and with or without accessories coming, so there might be a little more or less than its actuality.

2. The price here are based on trade term of FOB China.

3. Delivery are usually carried out by sea in 10-15 days after order confirmed. If you need your order to be delivered by air or by express, you are required to pay an extra delivery cost.

4. Import cost is not inluded. Please check your local customs for import tax and other fees arising from the import.

5. Payment term:

- FCL Order: 30% after order confirmed, and balance against order completion before shipment.

-LCL Order: 100% prepaid.
