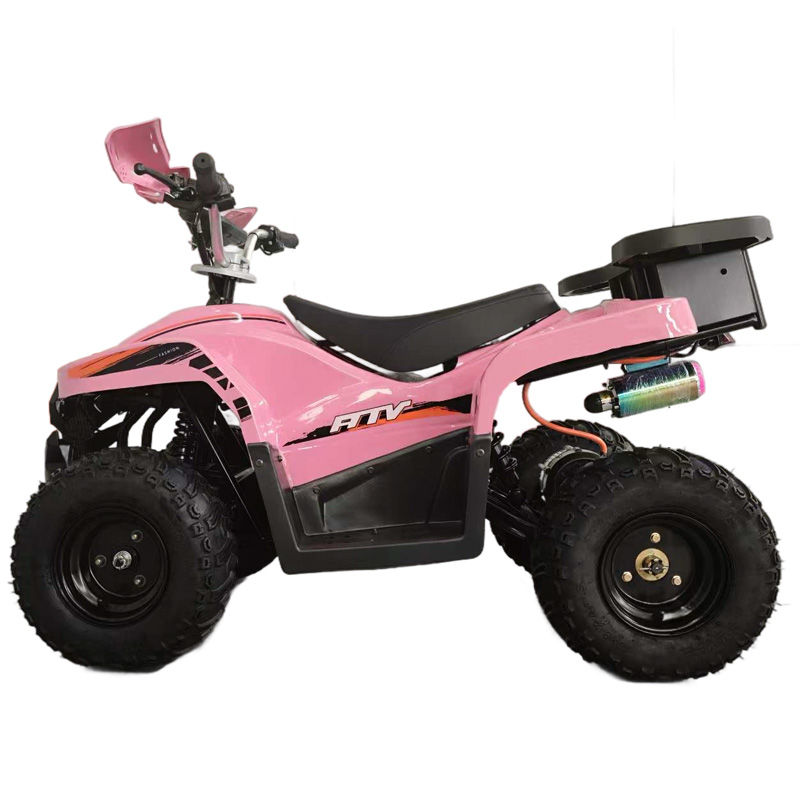

Product: Kids Mini Electric ATV: Full Suspension & Reverse Gear Quad
Model: Dash Dune
Frame materials: high carbon steel
Rated Power: 650W Brushless
Batttery: 48V/20Ah Li-ion (updated to 48V45Ah)
Charging: 5-7 hours
Suspension:
- front dual hydraulic spring damper with swing arms
- rear single spring damper
Drive: differential shaft
Brakes: Front disc on 2 wheels/Rear rear on axle
Wheels: F:16*8-7 / R:16*8-7 tubeless
Ground clearance: 900mm
Battery Life Cycle: ≥300
High speed: 25km/h (M: 18km/h ; L: 12km/h)
Range per charge: 30-40km(48V20A)
Group clearance: 90mm
Wheelbase: 860mm
Seat Height: 560mm
Overall size: 1370*810*900mm
Net/Gross Weight: 60/70kg
Max loading: 120kg
Packing size:
- 1200*800*800mm (wheels removed)
- 1480*800*1010mm (wheels not removed)
Packing: in out steel rack with inner carton of one piece each.Color available for plastic body): Blue ,Red,Pink,White,Yellow
MOQ:
- 20pcs for one single model
- 68pcs in 1*20'GP for mixed models.(based on wheels removed)
- Prices are based on one shipment in 1*20'GP
Recommended Order Quantity (ROQ):The above price is based on Recommended Order Quantity (ROQ) FOB China. If you need to order more or less than the above ROQ, please contact us through email to [email protected]
Attention:1. Weight and size: the products weight and size are measured manually, and with or without accessories coming, so there might be a little more or less than its actuality.2. The price here are based on trade term of FOB China.3. Delivery are usually carried out by sea in 10-15 days after order confirmed. If you need your order to be delivered by air or by express, you are required to pay an extra delivery cost.4. Import cost is not inluded. Please check your local customs for import tax and other fees arising from the import.5. Payment term:
- FCL Order: 30% after order confirmed, and balance against order completion before shipment.
-LCL Order: 100% prepaid.
