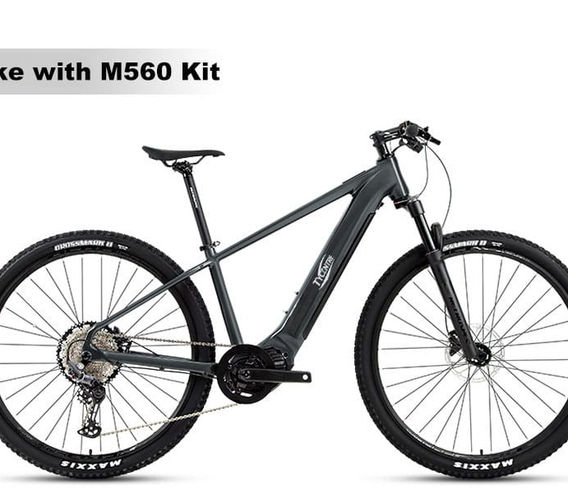

A005 Aluminum EMTB Frameset with Bafang M560 Mid Motor

USD

1070

Please Click Here to view Aluminum EMTB Frameset with Bafang M560 Mid Motor and other EMTB frameset.

Model No.: A-005

Product: full suspension eMTB frame+ Bafang Mid Motor M510/560
Specifications
Frame Size:29(27.5)×16" / 18"
Material: Aluminum alloy 7005
ASSY Size:

- Head tube 52*52

- Inner Cables+Seat post 31.6+Clamp 34.9,

- Thru axle 12*148 Boost, UDH, Fit to Rear shox 200*55(24/24),

- Frame travel 140,

- Max tire 29*2.4(27.5*2.5)；

- Fit to Bafang Mid motor M510/560

- Max 40 cells 21700
Process: AM, EPS, Inner-Cables, Gloss+UV laser decals
Frame Weight: approx 3.90KG (without Battery Case kits)

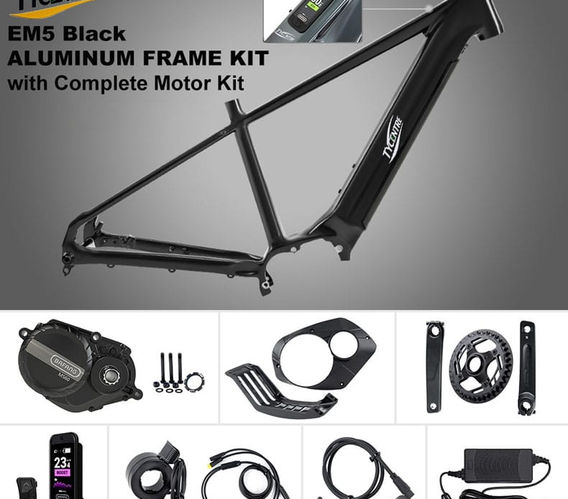

Pacakage Including

1. Frame: 1pc

2. Mid Motor+guard: 1 set

3. Crank + chainring: 1 set

4. Display(C030): 1pc

5. Throttle: 1 set

6. Speed sensor: 1 set

7. Battery charger: 1pc

MOQ:

- 10pcs

Recommended Order Quantity (ROQ):

The above price is based on Recommended Order Quantity (ROQ) FOB China. If you need to order more or less than the above ROQ, please contact us through email to [email protected]

Attention:

1. Weight and size: the products weight and size are measured manually, and with or without accessories coming, so there might be a little more or less than its actuality.

2. The price here are based on trade term of FOB China.

3. Delivery are usually carried out by sea in 10-15 days after order confirmed. If you need your order to be delivered by air or by express, you are required to pay an extra delivery cost.

4. Import cost is not inluded. Please check your local customs for import tax and other fees arising from the import.

5. Payment term:

- FCL Order: 30% after order confirmed, and balance against order completion before shipment.

-LCL Order: 100% prepaid.
