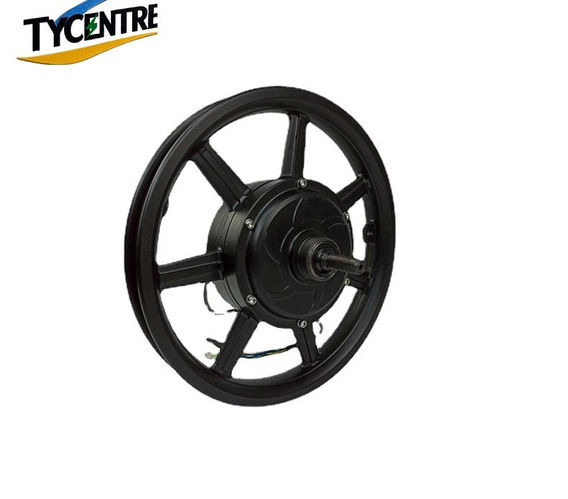

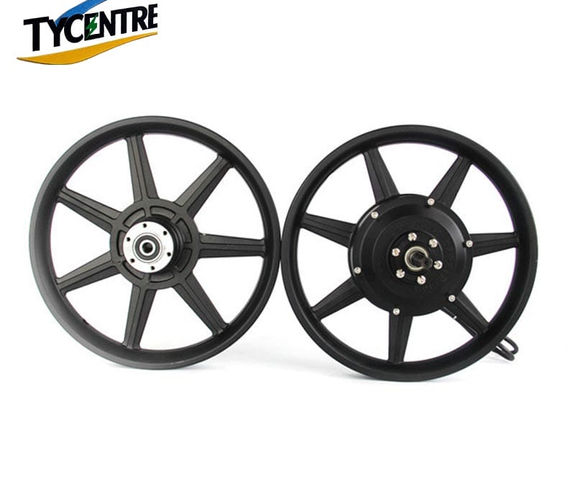

PY-02-01-14-QXA: 14" Integrated Wheel Hub Motor For E-Bikes

USD

39.99

Product Name: DC Motor for Ebikes

Model: PY-02-01-14-QXA
Rated Voltage (V): 24/36/48
Rated Power (W): 180-350
Wheel Diameter: 14″
Rated Speed (km/h): 25
Efficiency (%): ≥80
Gear Reduction Ratio: 1:4.4
Weight (Kg): 3.65
Dropout (mm): 100; 120/130/140
Drive & Freewheel: Front Drive/No Freewheel; Rear Drive/Single-Speed Freewheel (14T/16T, 12T Customizable)
Wire Exit Configuration: Optional
Hall Sensor: Optional
Internal Speed Sensor: Optional
Paint Finish: Black/Silver
Brake Type: V-Brake/Disc Brake
Salt Spray Test (Hours): 24/96
Noise (dB): <55 dB
Waterproof Rating: IP54/IP65

MOQ:

- 5pcs for one single model

Customization welcome subject to the terms below

Logo/graphic design: +$1/piece (Min. order: 500 pieces)

Graphic customization: (Min. order: 500 pieces)

Customized packaging: (Min. order: 500 pieces)

Recommended Order Quantity (ROQ):

The above price is based on Recommended Order Quantity (ROQ) FOB China. If you need to order more or less than the above ROQ, please contact us through email to [email protected]

Attention:

1. Weight and size: the products weight and size are measured manually, and with or without accessories coming, so there might be a little more or less than its actuality.

2. The price here are based on trade term of FOB China.

3. Delivery are usually carried out by sea in 10-15 days after order confirmed. If you need your order to be delivered by air or by express, you are required to pay an extra delivery cost.

4. Import cost is not inluded. Please check your local customs for import tax and other fees arising from the import.

5. Payment term:

- FCL Order: 30% after order confirmed, and balance against order completion before shipment.

-LCL Order: 100% prepaid.
