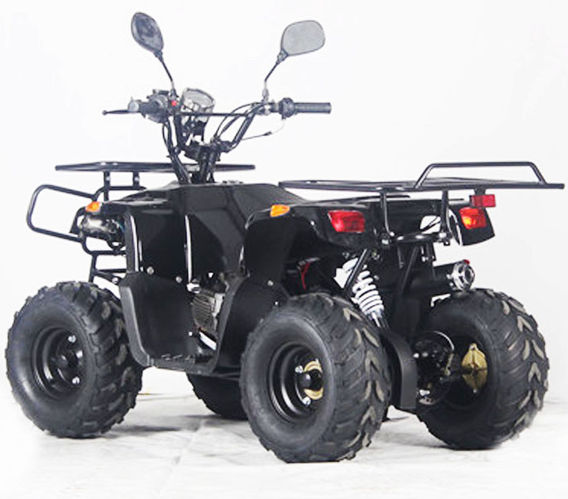

110cc Gas Hummer ATV Quad Bike - Rugged Utility Off-Road Vehicle

USD

419

Please Click Here to view Youth ATV Bikes

Product: 150cc Gas Hummer ATV Quad Bike - Rugged Utility Off-Road Vehicle

(available with 150cc/200cc gas power at extra fees)

Model: Gas Hummer

Frame materials: high carbon steel

Engine type and displacement: 110cc, Single cylinder,4-stroke,air-cooling, camshaft upward, withbalance shaft，tilting (100 leaned)

Bore x stroke: 52.4×49.5 mm

Compression Ratio 9.5:1 ~ 10.5:1

Gas fueling max ratio: Unleaded Petrol
Max Power: 5.2 kW (approx 7.0 hp) / 7500 rpm

Max Torque: approx. 6.5/6000±500

Meter: single function

Transmisstion: by chain with 3 gearshift + reverse

Tank capacity: 3.0L steel tank

Ignition mode: CDI

Battery: 12V 5A

Max Speed: 50km/h

Brakes: front drum and rear hydraulic disc

Accelerating: handle twist

Suspension:

- steel pipe in "A" type

- rear high quanlity hydraulic air-cell damp

Wheel size: F:16*8-7

Seat Height: 630mm

Wheelbase: 950mm

Ground clearance: 100mm

Recommended riders age: ≥15

Max loading: 110kg

Hand Guards: not included.

Overall size: 1400*900*980mm

Net/Gross Weight: 65.0/78.0kg (in steel rack)

Packing size: 1300*755*645mm (wheels not removed)

Packing: in out steel rack with inner carton of one piece each.

Color available for plastic body: Blue,Red,Green,White,Black and camouflage(extra fee required)

MOQ:

- 20pcs for one single model

- 110pcs in 1*40'HQ for mixed models.(based on wheels removed)- Prices are based on one shipment in 1*40'HQ

Recommended Order Quantity (ROQ):

The above price is based on Recommended Order Quantity (ROQ) FOB China. If you need to order more or less than the above ROQ, please contact us through email to [email protected]

Attention:

1. Weight and size: the products weight and size are measured manually, and with or without accessories coming, so there might be a little more or less than its actuality.

2. The price here are based FCL order FOB China.

3. Delivery are usually carried out by sea in 10-15 days after order confirmed for the default specs(customized specs requiring longer delivery duration). If you need your order to be delivered by air or by express, you are required to pay an extra delivery cost.

4. Import cost is not inluded. Please check your local customs for import tax and other fees arising from the import.

5. Payment term:

- FCL Order: 30% after order confirmed, and balance against order completion before shipment.

-LCL Order: 100% prepaid.
