Ebike Academy 07: How Ebike Motor, Controller, and Battery Work Together

Transitioning from a beginner to an intermediate rider means moving beyond just "riding" and starting to understand the heart of your machine. The performance of any electric bike depends on the seamless synergy between three core components: the ebike battery, the motor, and the intelligent controller. Check out the below simple disgram to konw How Ebike Motor Controller Battery Work Together.

Interaction between an ebike motor, controller, and battery.

1. The Ebike Battery: The Power Reservoir of Your Electric Vehicle

Think of the battery as the fuel tank. In the world of ebikes, lithium-ion batteries are the gold standard, providing the energy needed to propel you forward.

• Voltage (V): Determines the potential "push" of electricity.




• Amp-Hours (Ah): Determines the capacity or how long you can ride.




• Synergy: The battery must provide a consistent voltage that matches the requirements of both the controller and the motor to prevent system shutdowns.

Installing a high-capacity lithium ebike battery

2. The Ebike Controller: The "Brain" Orchestrating the Flow

The controller is arguably the most critical yet misunderstood part of an electric bicycle. It acts as a bridge between your input (throttle or pedal assist) and the motor's output.

• Current Regulation: It pulls energy from the battery and converts it into a format the motor can use.




• Safety Logic: It monitors heat and voltage, cutting power if the system is overloaded to protect your ebike spare parts.




• User Input: When you adjust your PAS (Pedal Assist System) level, you are actually sending a command to the controller to increase or decrease the current flow.

 The complex internal "brain" of an ebike controller with organized wiring.

3. The Ebike Motor: Converting Electricity into Motion

The ebike motor is where the magic happens. Whether it’s a hub motor or a mid-drive motor, its job is to convert the electrical energy sent by the controller into mechanical torque.

• Torque vs. Speed: A well-balanced system ensures that the motor provides enough torque for hill climbing without draining the battery instantly.




• Efficiency: High-quality motors operate at peak efficiency when the controller manages the energy flow precisely, extending your total range.

A powerful ebike hub motor that generate movement

![Image 3: A detailed cross-section of a powerful ebike hub motor, highlighting the copper coils and magnets that generate movement.]

4. Why TYCENTRE VEHICLES Offers the Perfect Synergy

At TYCENTRE VEHICLES, we don't just assemble parts; we engineer ecosystems. Our entire range—including ebikes, electric quad ATVs, and mobility scooters—features perfectly calibrated components. If you need a complex motor, battery and controller for DIY ebikes, you may like Ebike Conversion Kits.

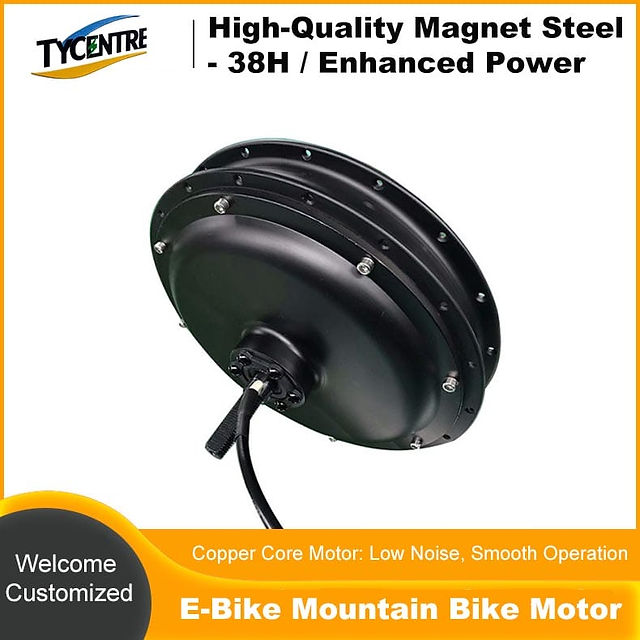

Ebike hub motor

Ebike controller

Ebike lithium battery Li-ion

Check out How Ebike Motor Controller Battery Work Together

When you choose TYCENTRE, you aren't just getting a high-performance electric vehicle; you are getting the peace of mind that comes with our excellent after-sales service. We provide genuine ebike spare parts and technical support to ensure your motor, controller, and battery continue to work in perfect harmony for years to come.

Performing a diagnostic check on an ebike's electrical system to ensure optimal synergy

This is Ebike Academy 07: How Ebike Motor, Controller, and Battery Work Together. If you Like it, please give us a like.
